Motor shaft 4 or 8 spline automatic punching machine

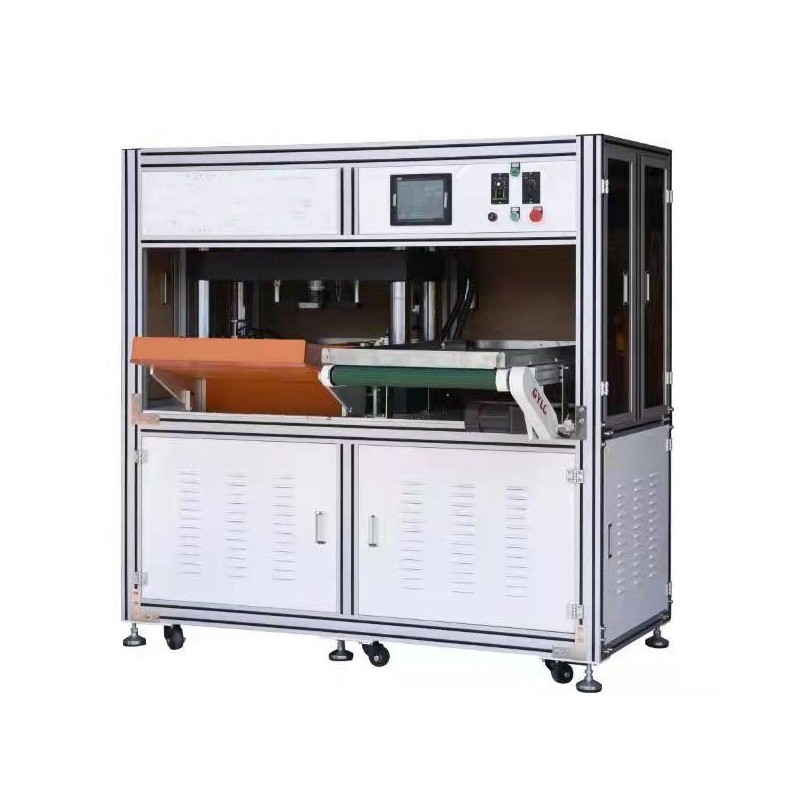

The TB8-12x230Motor Shaft Split Punching Machine, Special Purpose Machine, is constructed with aluminum profiles

for its exterior structure. It uses hydraulic press stamping to process the four ribs, eight ribs, twelve ribs, and sixteen

ribs around the motor shaft components. It has the advantages of low noise, low vibration, high precision, and high

efficiency. This machine is mainly designed for motor shafts with a diameter of 8-12mm and a total product length

of 230mm or less. In addition, the equipment is equipped with an automatic loading and unloading mechanism,

which can achieve automatic feeding and receiving functions, reduce employee labor intensity, and improve

processing efficiency.

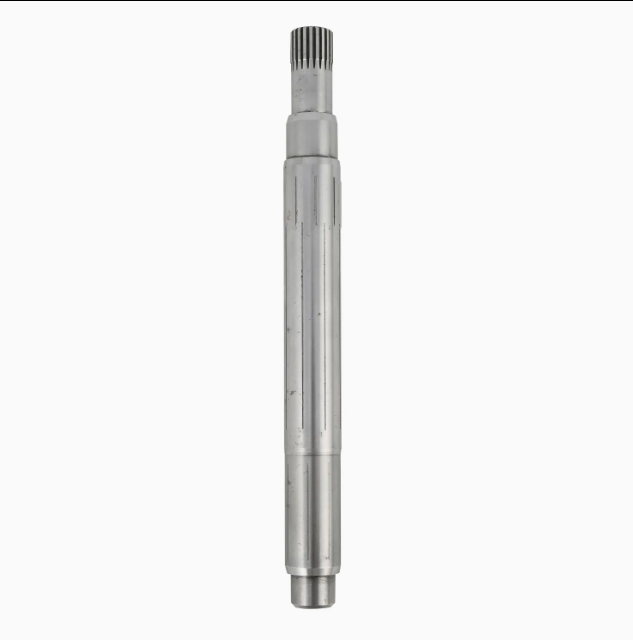

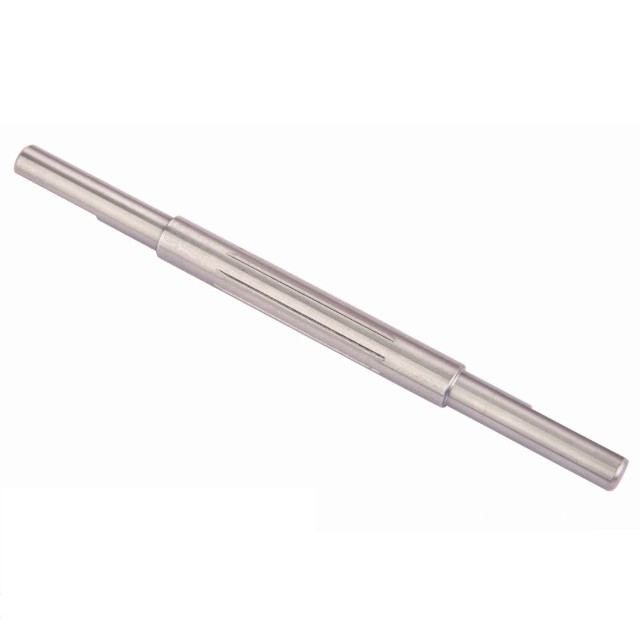

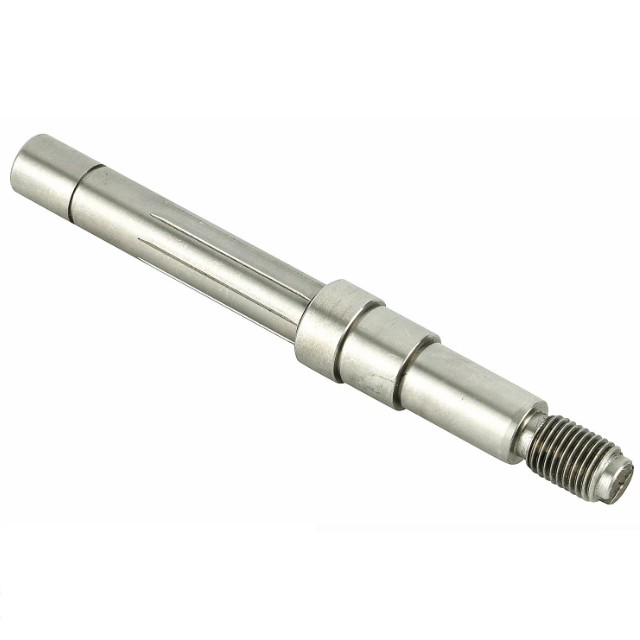

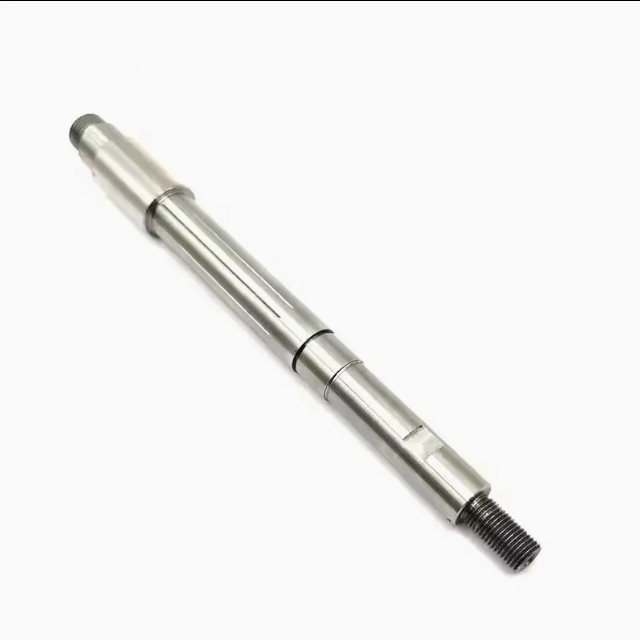

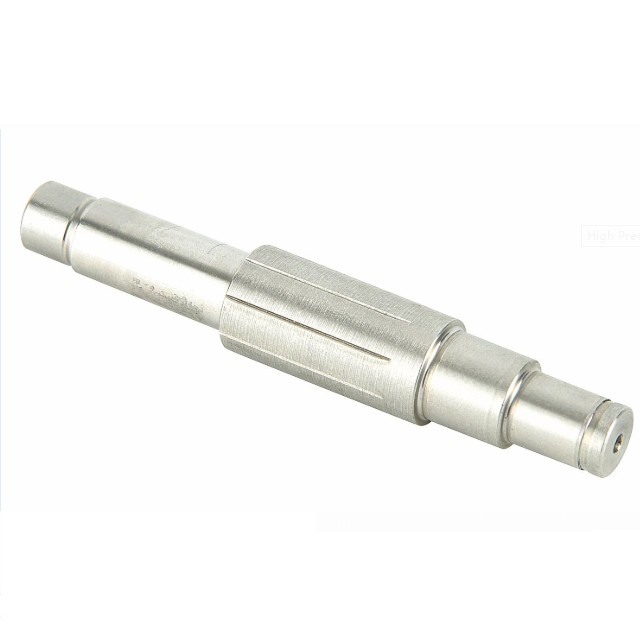

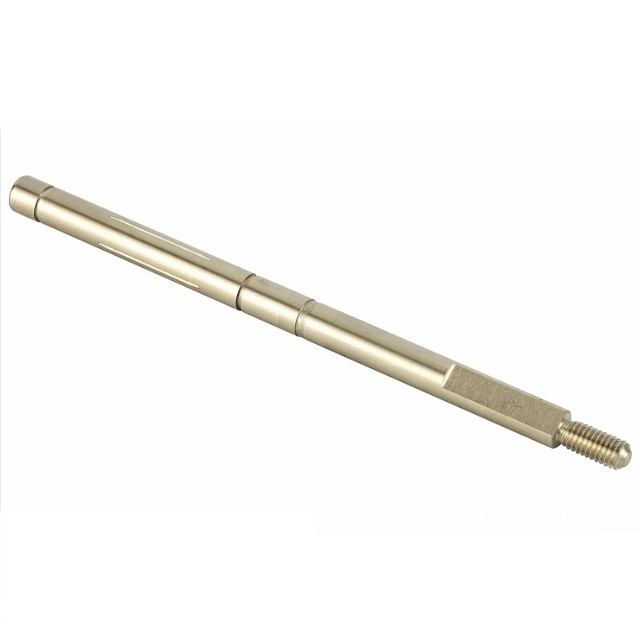

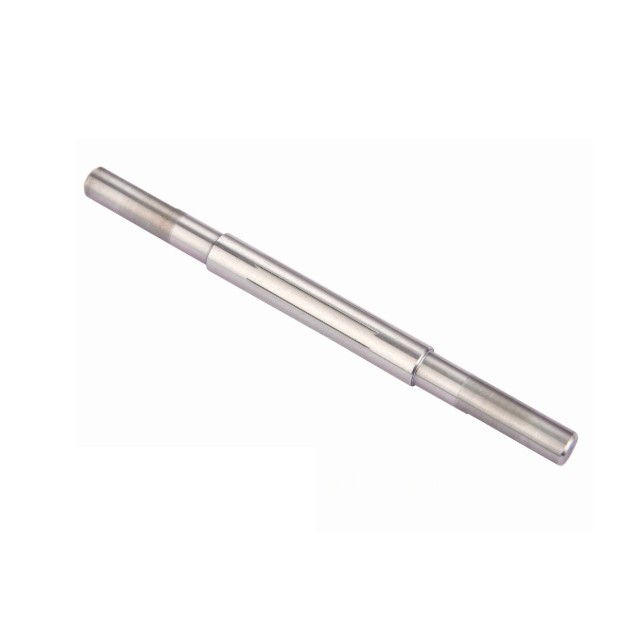

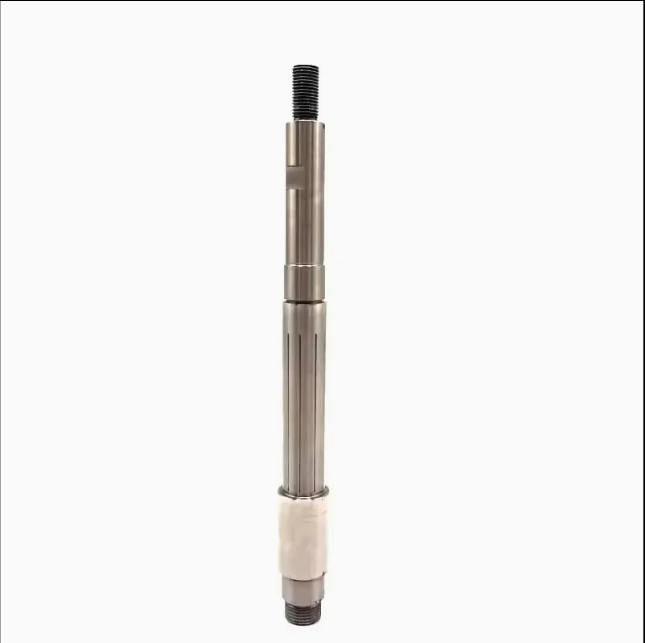

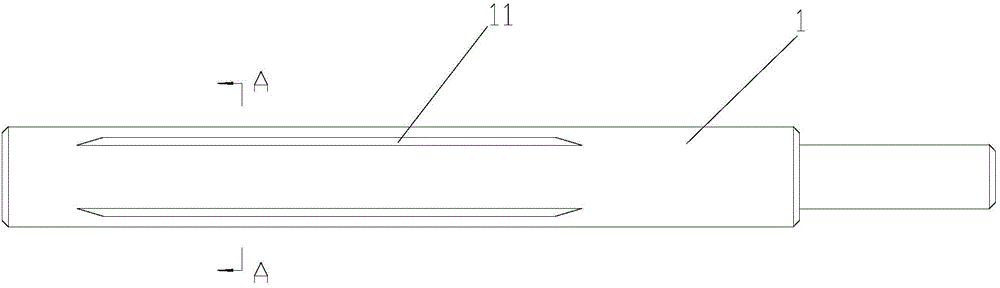

Motor shaft split punching machine, special purpose machine is a specialized equipment used to punch

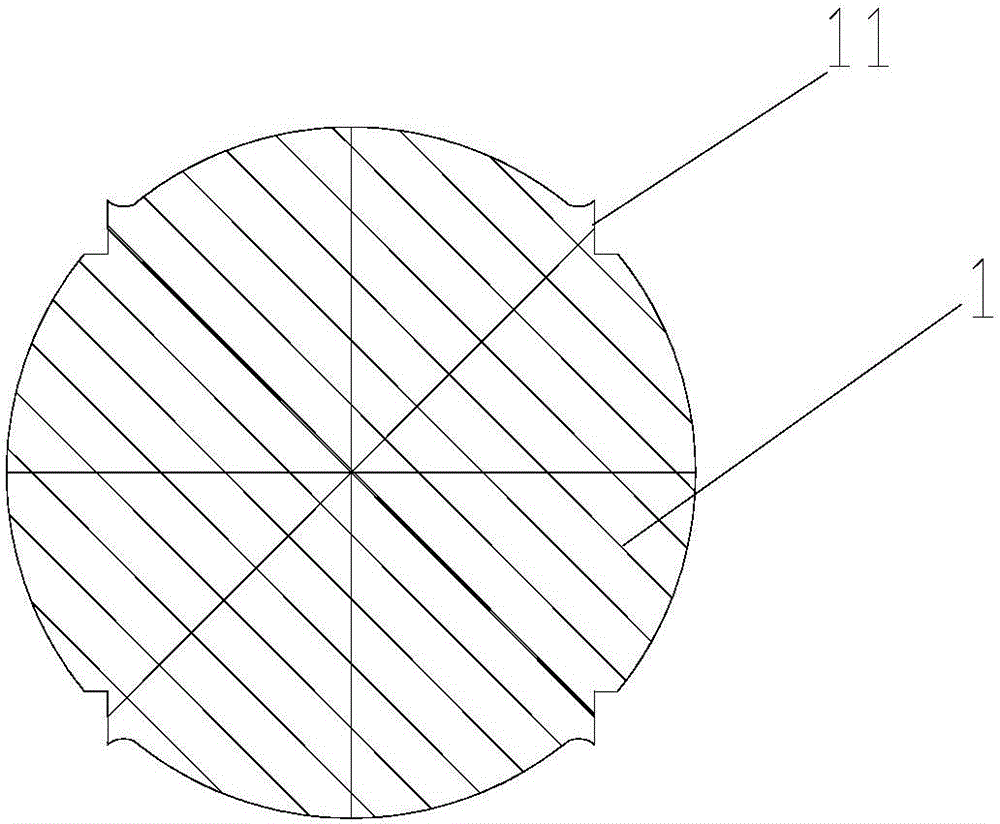

ribs (usually 4 or 8 ribs) around the outer diameter of the motor shaft. This process involves machining

certain grooves on the motor shaft to make the magnetic field of the motor more uniform and stable,

thereby improving the efficiency and performance of the motor.

The main functions of the Motor shaft split punching machine include:

Enhance the strength and load-bearing capacity of the motor shaft: The motor shaft is subjected to various forces during

operation. Through punching processing, raised edges and other shaped lines can be formed on the surface of the motor

shaft, thereby improving its strength and load-bearing capacity and extending its service life.

Improve the wear resistance of the motor shaft: The motor shaft often comes into contact with metal products or hard

objects during operation, resulting in easy surface wear. Punching processing can increase the wear resistance of the

motor shaft surface, reduce wear, and thus extend its service life.

The specific steps of a motor shaft split punching machine, special purpose machine include preparation work (such

as cleaning and inspecting the motor, preparing tools and materials), determining the position and size of the shaft

punch, and performing motor shaft punch processing. After completing the processing, it is necessary to inspect the

motor to ensure that the quality and accuracy of the shaft punch meet the requirements.

Overall, the Motor shaft split punching machine is an important tool for implementing the motor shaft punching

process, which is of great significance for improving the performance and service life of the motor. If you have a

purchasing demand for the motor shaft punching machine, you can consult professional mechanical manufacturers

or suppliers to obtain more information about product performance, price, and after-sales service.
