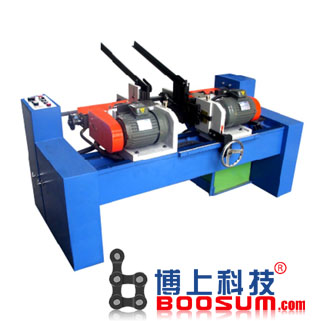

Automatic Double-head Chamfering Machine

　　 Video Show

　
Double head pipe chamfering machine  features：
Automatic Double-head Chamfering Machine
Automatic Double-head Chamfering Machine

1, Double head pipe chamfering machine  can automatically feed, saving manpower;
2, belt vibration Zhengliao ensure neat;
3, Special design accurate and reliable feeding mechanism, the intermediate conveyor station according Tube OD select the desired type, the type is easy to save time on the exchange;
4, super head design, solid fixed blade, an increase blade life;
5, the two-stage feed speed, save time, and the slow easy stepless adjustment, processing perfection;
6, heavy cast body strong and stable, can avoid machining vibrations.

 Automatic Double-head Chamfering Machine
Project ZH-BS50Hydraulic pressure Double chamfering machine
Host Motor Processing generally iron pipe 2×1.5kw/4p
Machined aluminum or bronze tube 2×1.5kw/1.0,2/4p
Processing of stainless steel pipe 2×1/0.75kw,4/8p
Bit Tool Standard head, for diameter3/8"～2"O.D
Working length According to customer requirements
Hydraulic motors 2HP
Weight 1250kg
Machine size 2250×1200×1600mm

Packaging & Delivery

Packaging Details:

 Wooden Case and Tin Trunk

Delivery Detail:

 30 days

Specifications

Chamfering Machine
1)Chamfer size can be adjusted
2)no burr on the both side of pipe mouth
3)don't hurt the hands
